DBF500030 - Land Rover Strip - Glazing And Sealing

SKU
DBF500030
£73.10 £60.92
Assign to My Vehicle

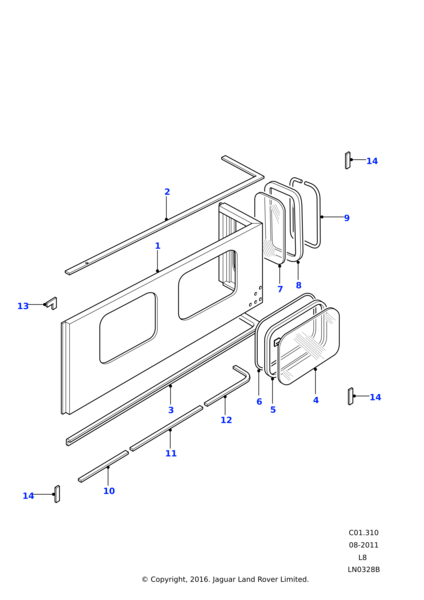

Select a drawing to view »
Fetching information…
Land Rover Defender Alpine Roof Window Seal - DBF500030 (1989–2016, 4mm Glass)

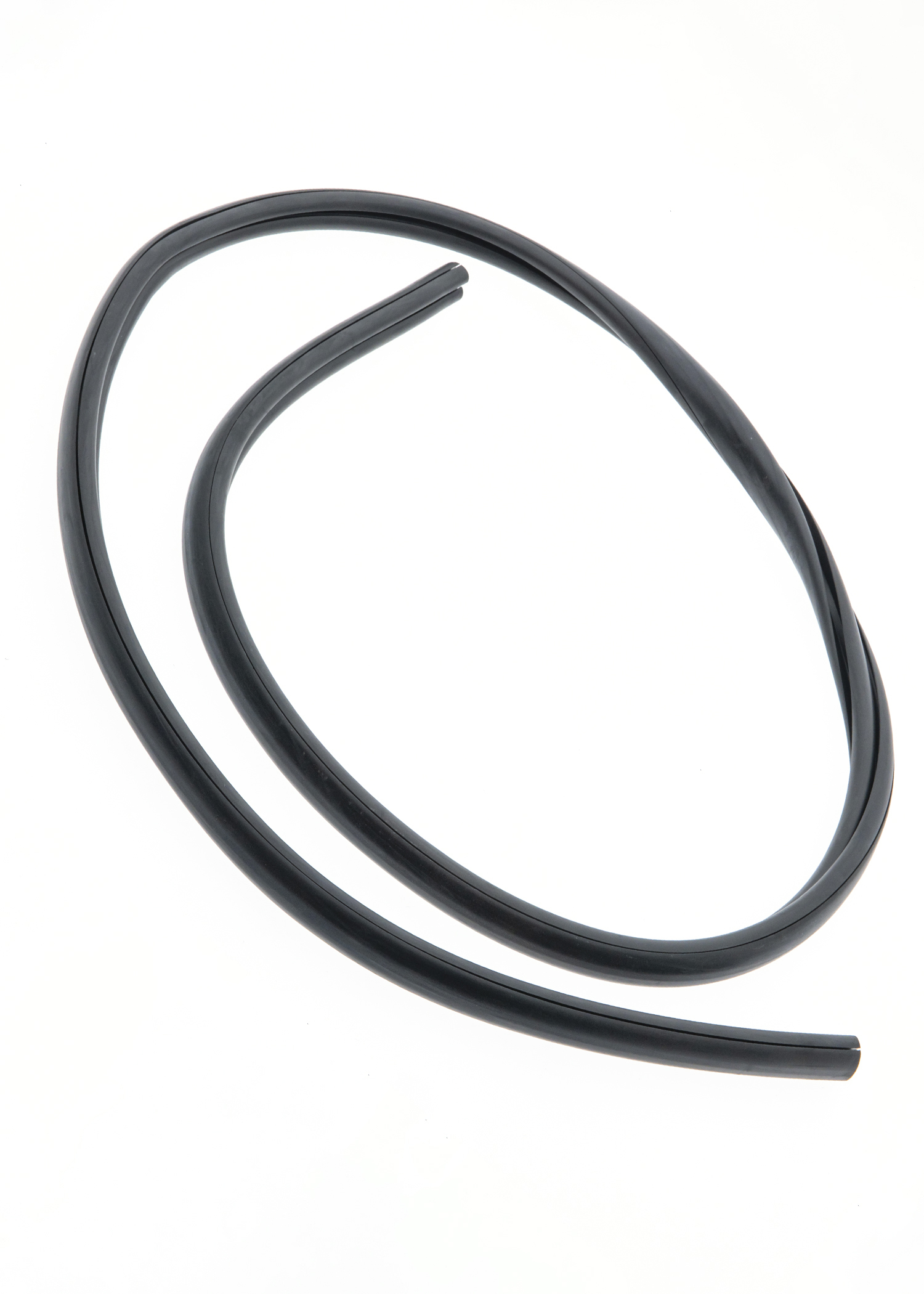

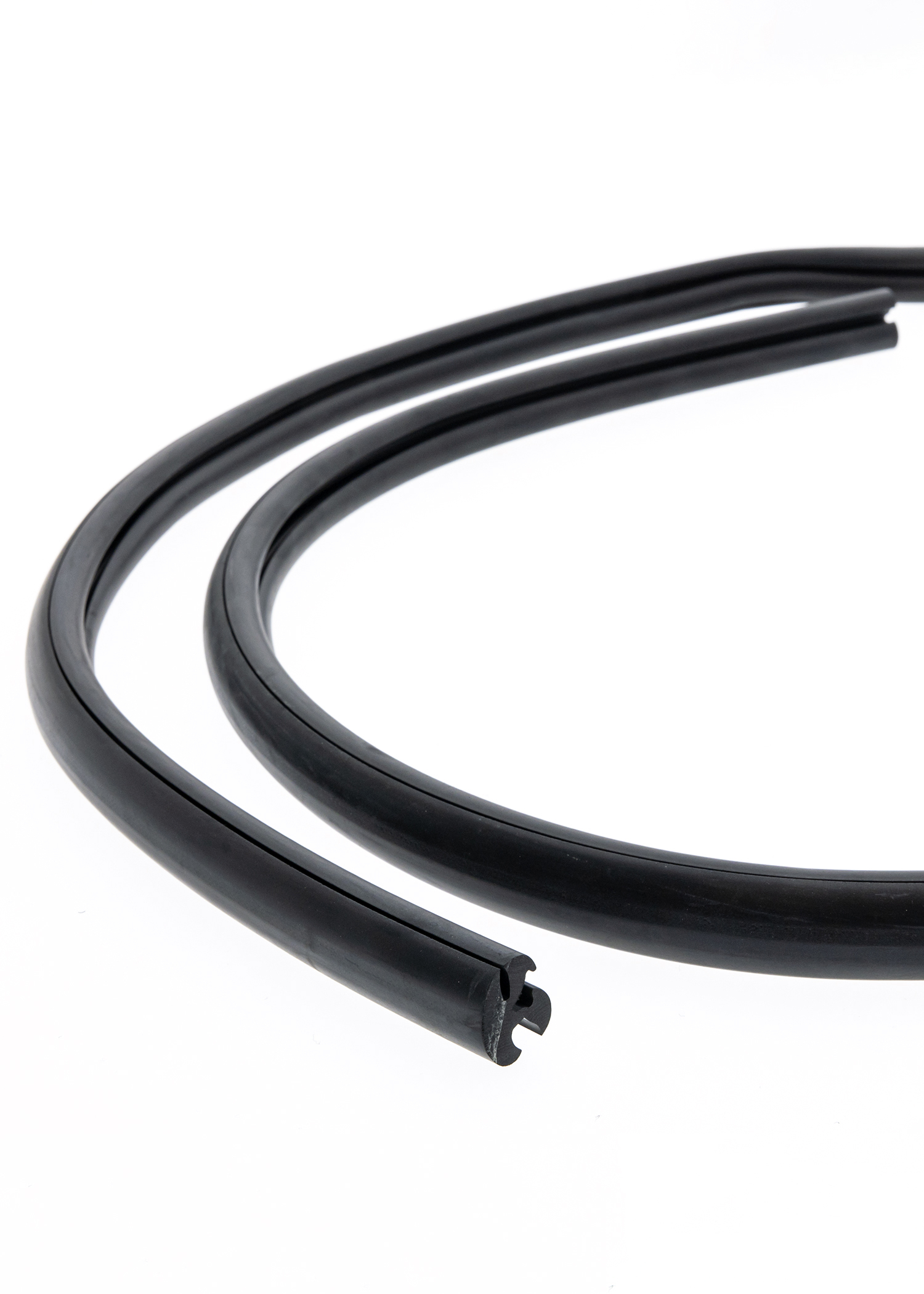

DBF500030 is the Alpine roof window glazing seal used on Land Rover Defender models from 1989 through to end of L316 production in 2016, including both 90 and 110 wheelbases. This rubber weatherstrip secures the fixed Alpine glass panels into the roof panel above the second row, forming the primary weather and structural interface between the glass and the roof aperture.
DBF500030 is designed to accept 4 mm roof glass, providing a tight, uniform compression fit around the entire aperture. It is one half of a two‑piece glazing system: the outer main seal (DBF500030) holds the glass in place, while the separate filler/locking strip (DBF500040) tensions the assembly to lock the glass securely into the frame. Genuine seals follow the Defender‑specific profile required to sit flush against the roof panel and maintain correct water run‑off characteristics.
DBF500030 supersedes earlier Alpine-window glazing seals such as MWC4771 and DBF500020, used on earlier Defender models. The current specification improves sealing longevity, UV resistance, and compatibility with later roof-pressing geometries.
This seal is fitted to Defender 90 and 110, including NAS models and both hard‑top and station‑wagon configurations that feature the standard twin Alpine windows. Over time, original seals commonly suffer from shrinkage, hardening, and cracking—leading to water ingress, wind noise, or loose glazing. Replacement of DBF500030 restores proper glazing retention, eliminates leaks, and improves cabin acoustic performance.
Additional Information
Additional Information
Brand LR
Delivery

Delivery is provided by DHL.

A signature will be required upon receipt.

Our courier will advise of a delivery time slot via email or SMS, along with tracking information.

We cannot guarantee delivery dates and are not responsible for delays caused by events beyond our reasonable control, such as poor weather conditions or labour disputes at the delivery service providers that we use.

Delivery will be complete once we have delivered the goods in question to the address you gave us (or any alternative address that you have agreed that we may leave the goods at). If no-one is available at the address to take delivery, the courier will leave you a note to this effect, in which case you should re-arrange delivery using the MyDHL app.

If you fail to contact the courier to re-arrange delivery within the period specified by the courier or fail to take delivery on the re-arranged date then the products may be returned to our warehouses. If that happens then we reserve the right to charge you for the additional costs that we may incur as a result and to cancel your order.

The goods become your responsibility once delivery has been completed.
