LR075816 - Land Rover Load/tail door assembly

Land Rover Defender Rear Load/Tail Door Assembly – LR075816 (2002-2016)

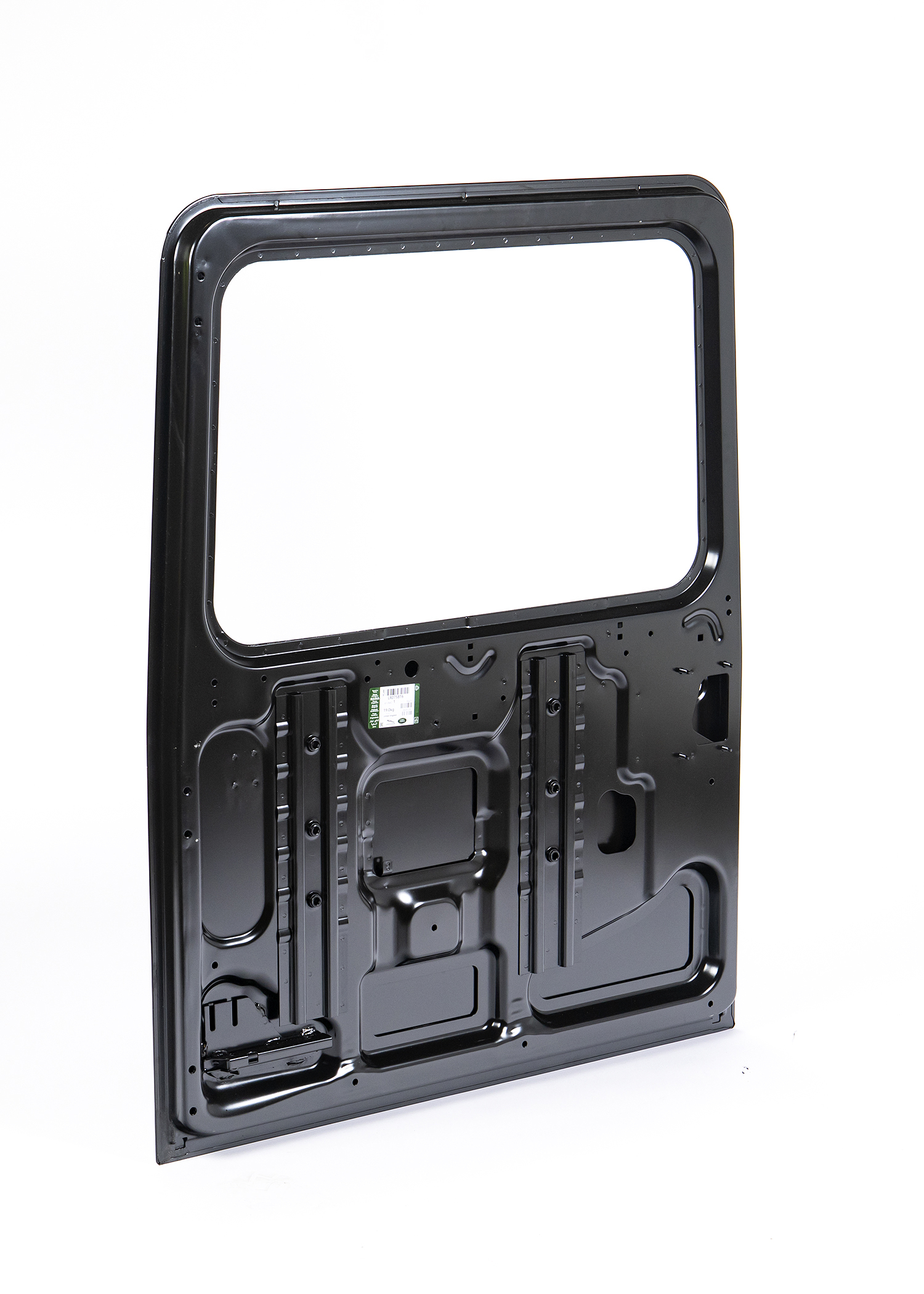

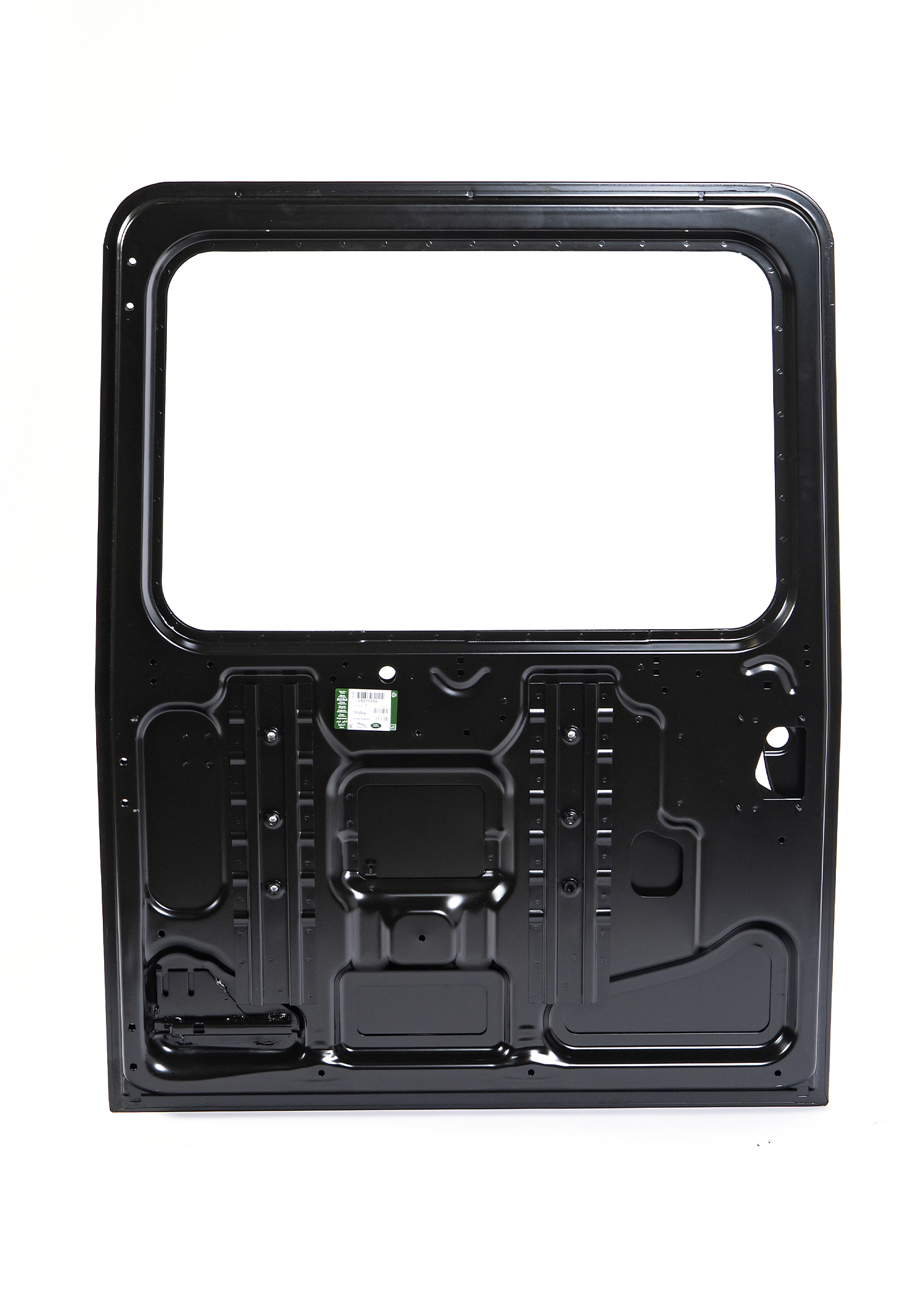

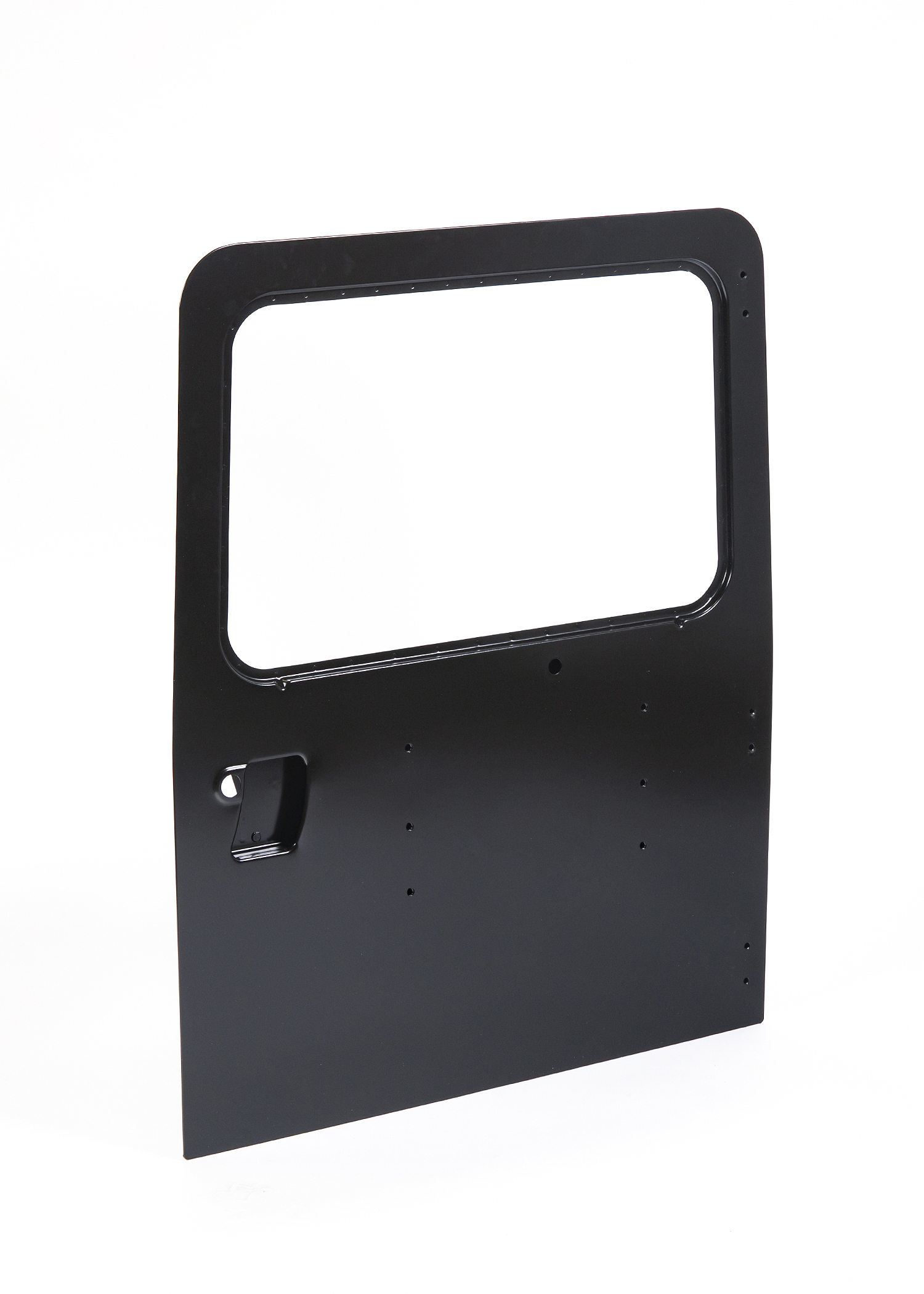

LR075816 is the rear load/tail door assembly used on Land Rover Defender 90 and 110 models from 2002 through the end of L316 production in 2016, covering both hard‑top and station‑wagon body styles. This unglazed tail door forms the complete outer closure for the rear load aperture and provides the structural mounting base for all associated hardware including hinges, latching components, reinforcement brackets and interior trim.

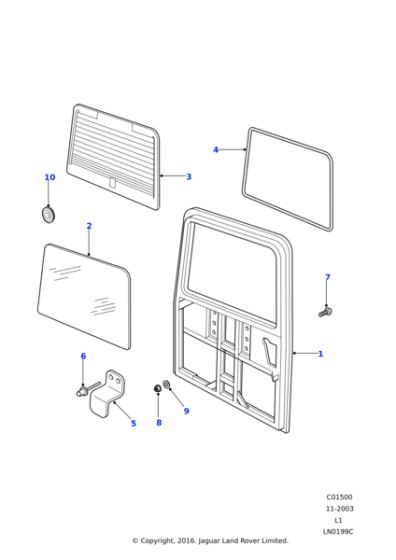

Manufactured as a full door shell, LR075816 is supplied without hinges and is designed to accept the vehicle’s existing hinge assemblies, lock mechanism, spare‑wheel carrier (where fitted), internal bracing, and perimeter weather seals. The door features pre‑formed hinge mounts and latch interfaces, pressed to match the Defender’s rear body aperture geometry. Genuine Land Rover units are electrophoretically coated for corrosion resistance and are supplied in primer ready for painting.

LR075816 supersedes earlier Defender tail‑door shells, including BIC710250, BIC710260 and LR036310, consolidating production into the late‑model door profile used from the Td5 era through the Tdci (Puma) platform.

This tailgate assembly is compatible with Defender 90 and 110 vehicles in both hard‑top and station‑wagon configurations, with hinge and striker alignment varying slightly by wheelbase and body type. Correct installation requires accurate hinge positioning and corrosion‑protection treatment at all mating surfaces, particularly in vehicles previously exposed to heavy use or off‑road environments.

LR075816 is commonly replaced during major body refurbishments or restorations where original doors have suffered from corrosion, delamination at the lower frame, distorted hinge mounts or fatigue around spare‑wheel‑carrier fixing points. Renewal of the complete shell restores structural rigidity to the load door, ensures correct closure and sealing performance, and provides a sound base for fitting new weatherstrips and interior trim.
