LR048200 - Land Rover Lens & body-stop/tail

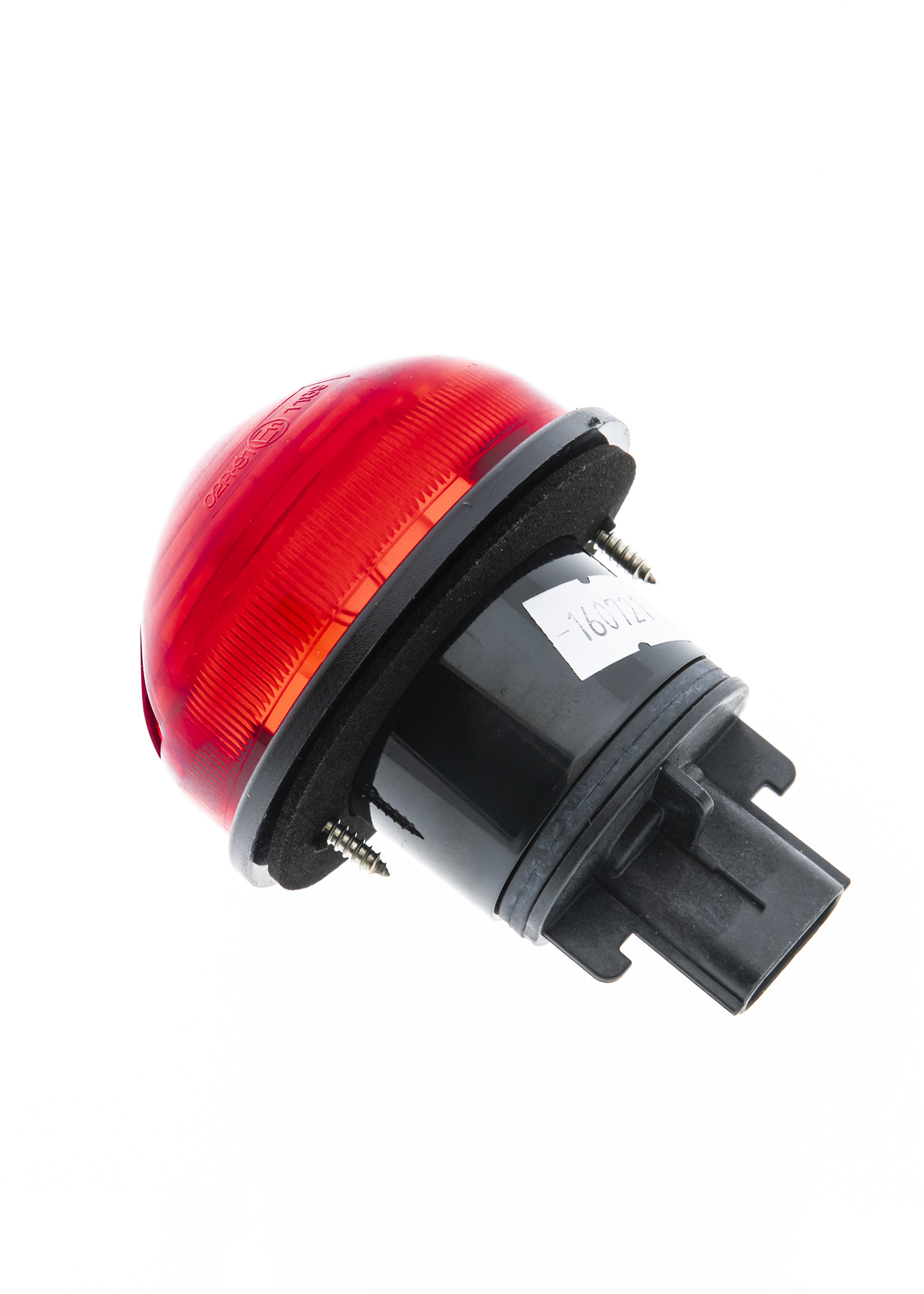

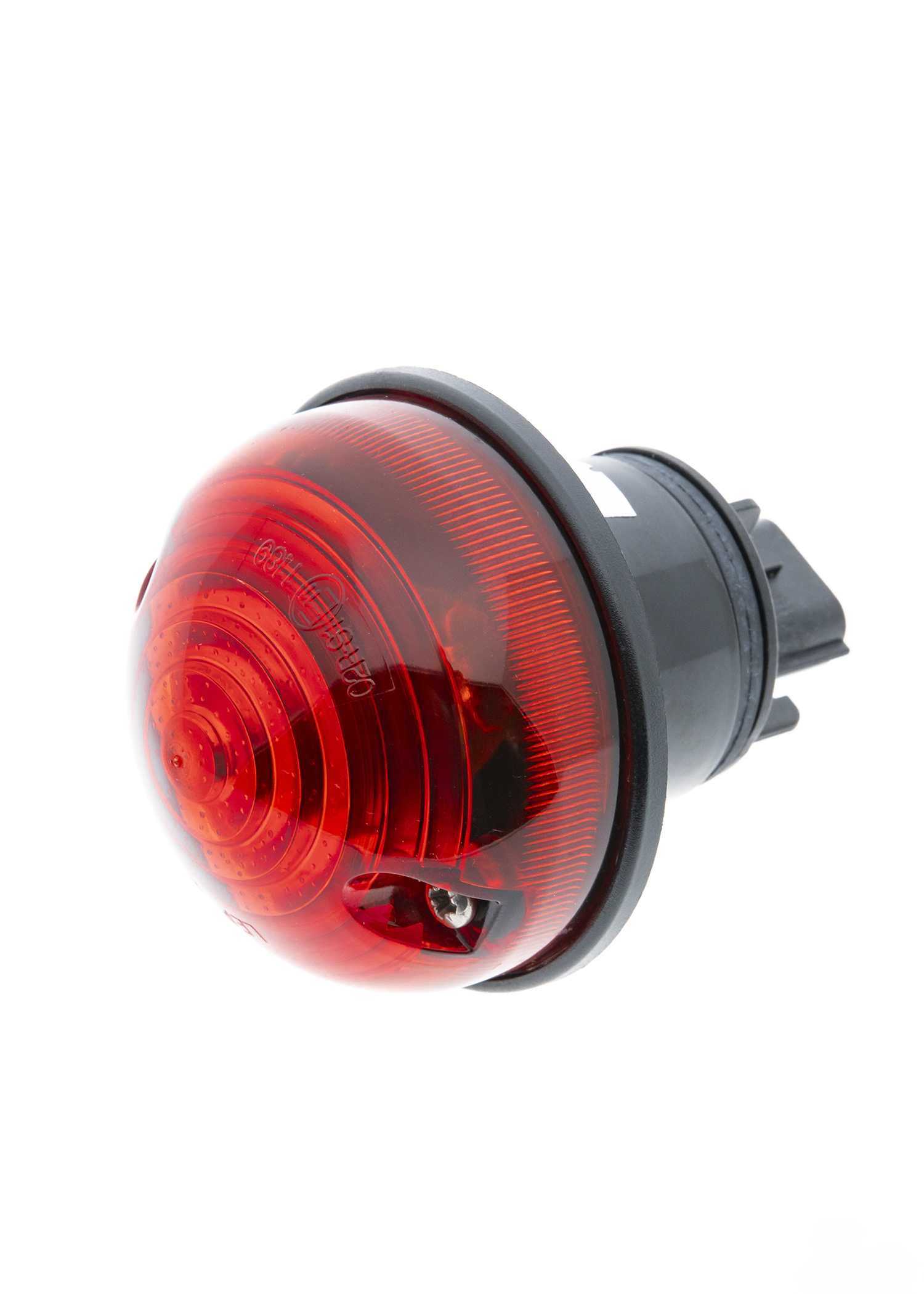

Land Rover Defender Rear Stop/Tail Lamp - LR048200

LR048200 is the rear stop‑and‑tail lamp assembly used on Land Rover Defender 90, 110 and 130 models from 1994 through 2016, covering both Td5 and Puma (L316) generations. The lamp mounts to the rear tub or rear body panel and provides both tail‑light illumination and brake‑light signalling via a twin‑filament bulb housed within the lens body.

Supplied as a complete assembly, LR048200 includes the red lens, bulb holder, and mounting screws, allowing direct replacement of earlier stop‑lamp units. Genuine Land Rover versions feature the standard 73 mm round body with black mounting bezel, and the lamp supersedes several previous part numbers including AMR6516, XFD100100, XFD500040, XFD100120, and STC1230 depending on region and build year.

Designed to deliver reliable rear‑lighting performance, the lamp’s dual‑function bulb operates the low‑intensity tail circuit and high‑intensity brake circuit, with the lens patterning providing correct light diffusion for visibility and compliance with lighting regulations. Replacement is common during refurbishment, MOT repairs, or when the lens becomes faded, cracked, or water‑ingressed.
